Wire Rope Lubricator: The Complete Guide to Wire Rope Lubrication

In many industrial sectors such as cranes, lifting operations, offshore, mining, ports, construction, and manufacturing, wire rope plays a critical role as a load-bearing and power-transmission component. Despite its strength and durability, wire rope is continuously exposed to mechanical wear, corrosion, and environmental stress, making proper maintenance absolutely essential.

One of the most effective maintenance solutions is the use of a Wire Rope Lubricator. This specialized equipment ensures that wire rope lubrication is applied evenly and penetrates deep into the internal structure of the rope, rather than remaining only on the surface.

This article provides a comprehensive overview of:

• What a Wire Rope Lubricator is
• How Wire Rope Lubrication Systems work
• The benefits of Wire Rope Grease Lubricators
• Types of Wire Rope Lubrication Machines
• Industrial applications
• Selection and maintenance tips
• Wire Rope Lubricator rental using the Viper MKII by PT ALL LIFTING INDONESIA

1. Understanding Wire Rope Structure and Characteristics

To fully understand the importance of a Wire Rope Lubricator, it is necessary to first understand the structure of wire rope itself.

Wire rope consists of:

• Individual steel wires
• Grouped into strands
• Strands wound around a central core (fiber core or steel core)

This construction provides high tensile strength and flexibility, allowing wire rope to operate under heavy loads and repetitive bending cycles. However, the same structure also creates:

• Internal friction between wires and strands
• Gradual loss of factory-applied lubricant
• Easy pathways for moisture, salt, and contaminants to enter the rope

Without a proper Wire Rope Lubrication System, internal deterioration often occurs long before visible external damage appears.

2. What Is a Wire Rope Lubricator?

A Wire Rope Lubricator is a specialized device designed to:

apply lubricant or grease into the internal strands and core of a wire rope using controlled pressure.

In industrial practice, it is also commonly referred to as:

• Wire Rope Grease Lubricator
• Wire Rope Lubrication Machine
• Wire Rope Greaser
• Wire Rope Lubrication Equipment

Unlike manual lubrication methods, a Wire Rope Lubricator ensures that lubrication reaches deep inside the rope, providing comprehensive protection.

3. Why Proper Wire Rope Lubrication Is Critical

Wire rope lubrication is not merely routine maintenance—it is a critical safety and cost-control measure.

Consequences of Inadequate Wire Rope Lubrication

• Internal corrosion
• Accelerated wear between strands
• Loss of flexibility
• Reduced lifting capacity
• Increased risk of sudden wire rope failure

Benefits of Proper Wire Rope Lubrication

• Extended service life of wire rope
• Reduced replacement and downtime costs
• Improved crane and hoist performance
• Enhanced operational safety

For these reasons, Wire Rope Lubricators are widely regarded as an industry best practice.

4. How a Wire Rope Lubricator Works

Although designs vary, the operating principle of a Wire Rope Lubricator is generally consistent:

4.1 Installation

The lubricator is installed around the wire rope using a clamp-on design, allowing maintenance without removing the rope from the system.

4.2 Lubricant Injection

Lubricant or wire rope grease is supplied through:

• Manual grease guns
• Pneumatic pumps
• Hydraulic or electric pumps

4.3 Controlled Distribution

Internal seals and channels guide the lubricant under pressure, ensuring even distribution around the rope.

4.4 Deep Penetration

The applied pressure forces lubricant:

• Between the strands
• Onto internal wires
• Into the rope core

The result is consistent and thorough wire rope lubrication.

5. Wire Rope Grease Lubricator vs Manual Lubrication

Manual lubrication methods typically involve brushing or spraying grease onto the wire rope surface. While simple, these methods are insufficient for modern industrial requirements.

Comparison

This makes the Wire Rope Grease Lubricator a far more effective solution.

6. Key Components of a Wire Rope Lubricator

6.1 Housing / Body

The main structure, typically made from high-strength steel or aluminum alloy.

6.2 Specialized Seals

Designed to prevent grease leakage while directing lubricant into the rope.

6.3 Lubricant Channels and Nozzles

Ensure controlled and even grease distribution.

6.4 Internal Mechanisms

Depending on the design, these may include:

• Roller systems
• Piston systems
• Wiper or blade systems

6.5 Grease Inlet

Connection point for grease guns or pump systems.

7. Types of Wire Rope Lubrication Systems

7.1 Manual Wire Rope Lubricator

• Operated with grease guns
• Suitable for small to medium wire ropes
• Cost-effective and portable

7.2 Pneumatic Wire Rope Lubrication System

• Powered by compressed air
• Ideal for large-diameter wire ropes
• Common in ports and mining operations

7.3 Hydraulic Wire Rope Lubricator

• Integrated with hydraulic systems
• Provides high and stable pressure
• Used in heavy industrial environments

7.4 Electric Wire Rope Lubrication Machine

• Automated lubrication process
• Suitable for continuous or large-scale operations

8. Industrial Applications of Wire Rope Lubricators

8.1 Cranes and Lifting Equipment

• Overhead cranes
• Mobile cranes
• Tower cranes

8.2 Ports and Shipyards

• Container cranes
• Ship loaders
• Mooring winches

8.3 Offshore and Marine Operations

• Offshore cranes
• Winches
• Drilling rigs

8.4 Mining Industry

• Hoisting systems
• Draglines
• Shaft lifting equipment

8.5 Manufacturing and Heavy Industry

• Material handling systems
• Industrial machinery

9. Choosing the Right Lubricant for Wire Rope Lubrication

Effective wire rope lubrication requires specially formulated lubricants that:

• Penetrate deeply into strands
• Resist corrosion
• Withstand water, salt, and contaminants
• Remain stable under extreme temperatures

Using the wrong grease can lead to clogged strands and reduced rope performance.

10. How to Select the Right Wire Rope Lubricator

Key selection criteria include:

1. Wire rope diameter range
2. Rope length and lubrication frequency
3. Lubricant type
4. Power source (manual, pneumatic, electric)
5. Operating environment

For short-term or project-based needs, Wire Rope Lubricator rental is often the most efficient option.

11. Wire Rope Maintenance Strategy and Lubrication Schedule

Recommended best practices:

• Regular visual inspections
• Lubrication every 50–100 operating hours
• Increased frequency in harsh environments (marine, mining, dusty areas)

A proper Wire Rope Lubrication System enables faster, safer, and more consistent maintenance.

12. Economic Benefits of Using a Wire Rope Lubricator

Industry studies consistently show that effective wire rope lubrication can:

• Extend wire rope service life by 30–50%
• Reduce maintenance and replacement costs
• Minimize operational downtime
• Improve overall maintenance ROI

13. Wire Rope Lubricator Rental by PT ALL LIFTING INDONESIA

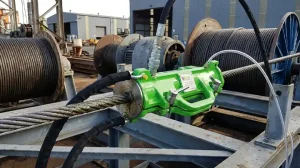

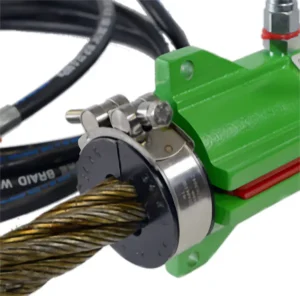

Professional Wire Rope Lubrication with Viper MKII

PT ALL LIFTING INDONESIA provides professional Wire Rope Lubricator rental services using the Viper MKII Wire Rope Lubricator, a trusted solution for industrial wire rope lubrication.

Advantages of the Viper MKII Wire Rope Lubricator

• Deep lubrication reaching the rope core
• Heavy-duty and durable construction
• Easy installation without removing the wire rope
• Suitable for cranes, hoists, winches, offshore, and mining applications
• Supports a wide range of wire rope diameters

Why Rent Instead of Buy?

• Lower upfront investment
• Flexible rental duration
• No equipment maintenance responsibility
• Professional technical support

Who Benefits Most?

• Project contractors
• Port and shipyard operators
• Mining companies
• Heavy manufacturing facilities

14. Conclusion

A Wire Rope Lubricator is an essential tool for modern industrial wire rope maintenance. Compared to manual methods, Wire Rope Grease Lubricators and Wire Rope Lubrication Systems provide:

• Superior internal protection
• Longer wire rope service life
• Enhanced safety
• Lower operational costs

For a practical and professional solution, PT ALL LIFTING INDONESIA offers reliable Viper MKII Wire Rope Lubricator rental services to support your maintenance and operational needs.
